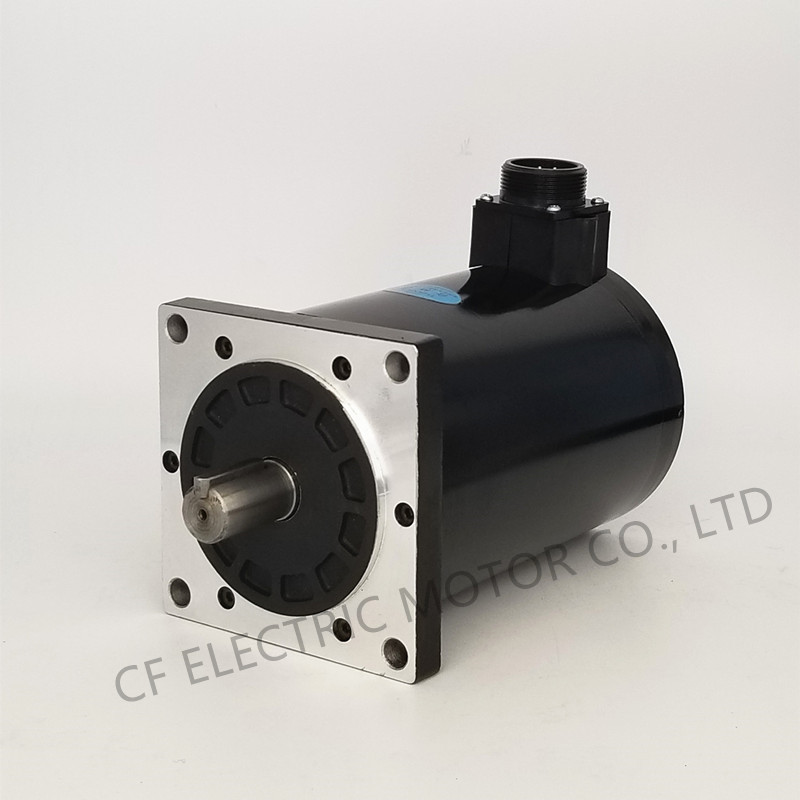

NEMA 42 Round Stepper Motor 110BYG Series
2-PHASE 3-PHASE 5-PHASE

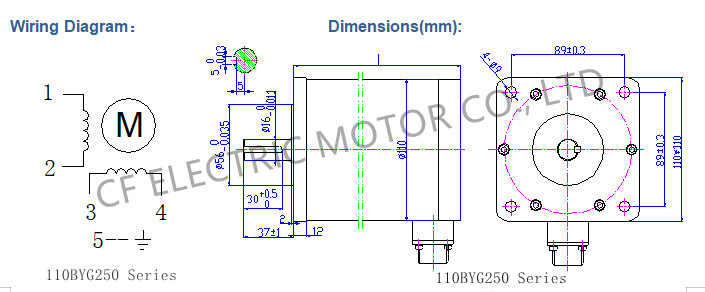

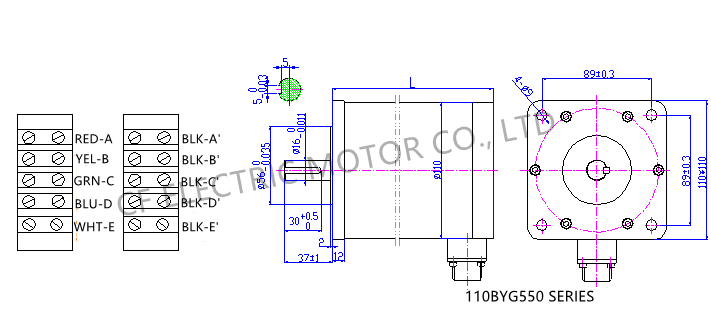

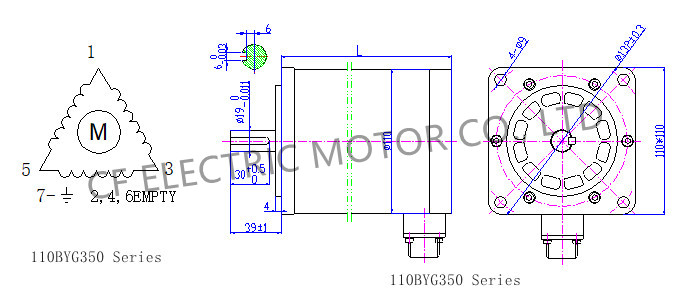

HYBRID STEPPER MOTOR 110BYG SERIES
General Specification：
Step Angle--------------------------------------------------------------------------------------------------------------- 1.8°，1.2°，0.72° (full step)
Step Accuracy -------------------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy--------------------------------------------------------------------------------------------------------------------±10%
Inductance Accurac ---------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise ---------------------------------------------------------------------------------------------------------------------85℃ Max
Ambient Temperature Range ------------------------------------------------------------------------------------------------------ 20℃∽+50℃
Insulation Resistance ----------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strengthh ---------------------------------------------------------------------------------------------1000VAC 50Hz 1mA 1min
Insulation Class---------------------------------------------------------------------------------------------------------- Fclass(155℃)
Electrical Specifications:
主要参数:
Model | Phase | L Motor Length (mm) | Holding Torque (N.m) Min. | Voltage （V） | Rated Current (A) | Rated Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
110BYG250 | 2 | 142 | 10 | 80-3005 | 6 | 0.45 | 5.9 | 5.6 | 5.5 |
110BYG250A | 2 | 170 | 12.5 | 80-300 | 6 | 0.55 | 8.0 | 8.4 | 7.5 |
110BYG250B | 2 | 198 | 18 | 80-300 | 6 | 0.67 | 10.0 | 12.6 | 11 |
110BYG250C | 2 | 226 | 22 | 80-300 | 6 | 0.68 | 8.3 | 16.8 | 13 |
110BYG350 | 3 | 142 | 10 | 80~325 | 2.4 | 1.34 | 13.5 | 5.6 | 5.5 |
110BYG350A | 3 | 170 | 12.5 | 80~325 | 2.8 | 2.0 | 20 | 8.4 | 7.5 |
110BYG350B | 3 | 198 | 18 | 80~325 | 2.8 | 2.6 | 30 | 12.6 | 11 |
110BYG350C | 3 | 226 | 22 | 80~325 | 3.0 | 3.2 | 35 | 16.8 | 13 |
110BYG550 | 5 | 142 | 10 | 80~150 | 3 | 0.96 | 6.0 | 5.6 | 5.5 |
110BYG550A | 5 | 170 | 12.5 | 80~150 | 3 | 1.0 | 7.6 | 8.4 | 7.5 |
110BYG550B | 5 | 198 | 18 | 80~150 | 3 | 1.1 | 9.5 | 12.6 | 11 |
110BYG550C | 5 | 226 | 22 | 80~150 | 3 | 1.2 | 12.8 | 16.8 | 13 |
*以上所列产品为基本型，可定制特殊要求的产品
Model | Phase | L Motor Length (mm) | Holding Torque (N.m) Min. | Voltage （V） | Rated Current (A) | Rated Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
110BYG350 | 3 | 142 | 10 | 80~325 | 2.4 | 1.34 | 13.5 | 5.6 | 5.5 |
110BYG350A | 3 | 170 | 12.5 | 80~325 | 2.8 | 2.0 | 20 | 8.4 | 7.5 |
110BYG350B | 3 | 198 | 18 | 80~325 | 2.8 | 2.6 | 30 | 12.6 | 11 |
110BYG350C | 3 | 226 | 22 | 80~325 | 3.0 | 3.2 | 35 | 16.8 | 13 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.
