CF2068H

DATA£º2019/5/27 10:37:16¡¡¡¡VISIT£º

Overview

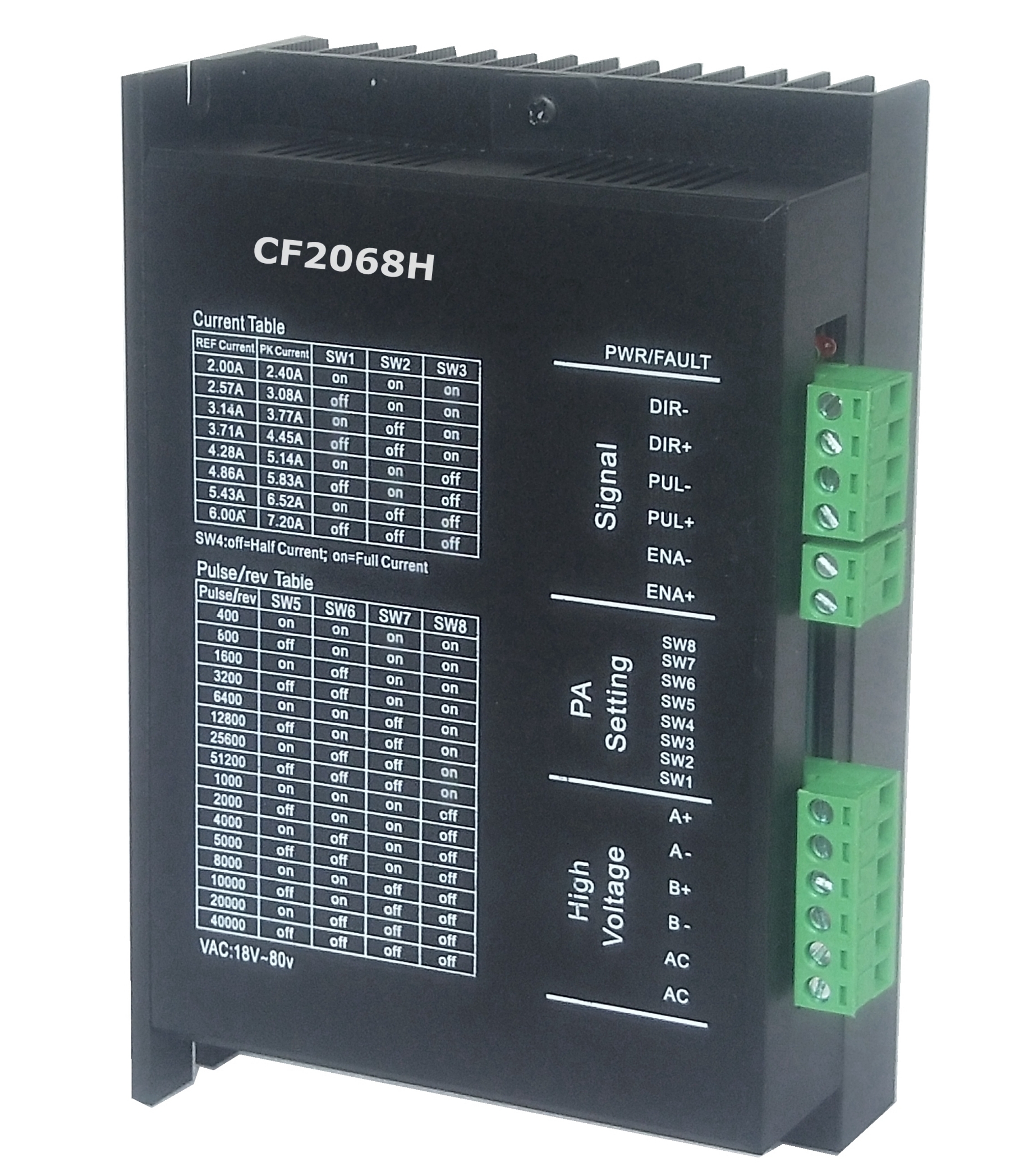

CF2068H is a 2-phase hybrid stepping motor driver   based on DSP control. It is a new generation of digital stepping motor drive   which combines advanced DSP control chip and 2-phase inverter drive module. The   drive¡¯s voltage is between AC18V-80V, adapter current is below 7.2A and 57-110MM diameter of all kinds of 2-phase   hybrid stepping motors. It uses a similar servo control circuit, which can   make the motor running smoothly, almost no vibration and noise. When the   motor is at high speed, its torque is much higher than other hybrid stepping motors.   Positioning accuracy is up to 40,000 steps / turn. The product is widely used   in engraving machine, medium-sized CNC machine tools, computer embroidery   machine, packaging machinery and other high resolution, large and   medium-sized CNC equipment.



Key Features

High performance   and low price

Equipped with 16   scales constant torque moment subdivision, the maximum resolution is 40,000   steps / turn

The maximum response   frequency is up to 200KPPS

When a stepping   pulse stops more than 1.5S, the coil current will be automatically reduced to   half of the set current

Optical isolation   signal input / output

Drive current 2.0A   / phase to 6.0A / phase 16 scales adjustable

Single power   input, voltage range: AC18-80V

The phase memory   function (Note: When the drive stops for more than 3 seconds, it will   automatically memorize the motor phase then re-energizes. When the WF signal   goes from low to high, the drive will automatically recover the motor phase.)



Current  Setting

The operating current of the drive is set by the SW1-3 terminals, which   switch for normal working output current (See the table below).

Operating current Ir(A)

2.0

2.57

3.14

3.71

4.28

4.86

5.43

6.0

SW1

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW2

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW3

ON

ON

ON

ON

OFF

OFF

OFF

OFF






Subdivision Settings

The drive¡¯s subdivision is set by SW5-8 terminals. It has 16 scales. SW4 is   function set. Subdivision reference table(pulse / revolution)

Subdivision

400

800

1600

3200

6400

12800

25600

51200

SW5

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW6

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW7

ON

ON

ON

ON

OFF

OFF

OFF

OFF

SW8

ON

ON

ON

ON

ON

ON

ON

ON

Subdivision

1000

2000

4000

5000

8000

10000

20000

40000

SW5

ON

OFF

ON

OFF

ON

OFF

ON

OFF

SW6

ON

ON

OFF

OFF

ON

ON

OFF

OFF

SW7

ON

ON

ON

ON

OFF

OFF

OFF

OFF

SW8

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

SW4

OFF=Half Current

ON=Full Current

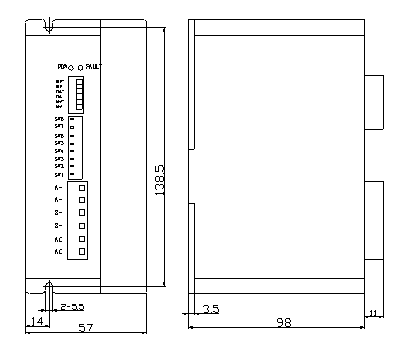

Drive Wiring and Dimension Diagram


1. Input voltage cannot exceed AC 80V.

2. Input control signal level is 5V. When higher than 5V, it needs to connect to a current limiting resistor.

3. Input pulse signal¡¯s falling edge is valid.

4. The fault indicator Fault light will be on when the drive¡¯s temperature exceeds 80¡æ and stops working. Until the drive¡¯s temperature drops to 50¡æ, it needs to re-power to resume work. Please install a radiator to protect excessing heat.

5. When Fault light for over-current (load short-circuit) fault indicator is on, please check the motor wiring and other short-circuit faults, then Re-power the motor for recovery after cleaning faults.

6. When Fault light for no-motor fault indicator is on, please check the motor wiring, then re-power for recovery after cleaning faults.
